- Integrated 868 MHz ISM band Receiver Module.
- Stores data from up to 10 Transmitter Modules (MSR385SM).
- Memory capacity for more than 1,000,000 measurements
- Up to 3 different internal or external sensors (temperature, RH, Pressure) per Transmitter Module.
- Operating temperature range from -20 to + 125°C
- Free User-friendly Data Acquisition and Analysis Software
- GSM terminal and MSR SmartCloud for Remote Monitoring
- Long-term measurements of up to 10 years
Description

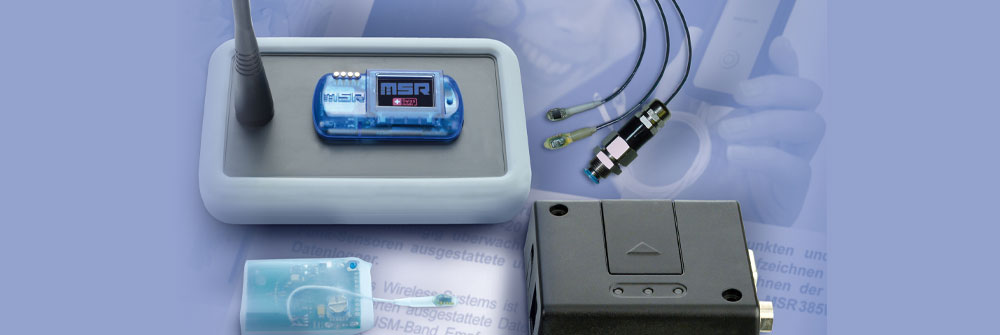

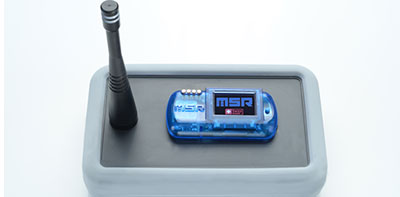

MSR385WD data logger comprises; an ISM receiver modules, through which it receives and stores data from up to 10 MSR385SM receiver modules; memory, sufficient to store up to 1,000,000 measured values; a bright OLED colour display, for instant viewing of measured data; and a lithium polymer battery, which is rechargeable via the USB interface.
MSR385SM transmitter modules, of which there are three variants, can have up to three different internal or external sensors selected from temperature, relative humidity, and air pressure. One variant (MSR385SMB63/64) can even operate over the -20 to +125°C temperature range while another, MSR385SMB66, powered by a replaceable 3600mAh LiSOCI₂ battery, will take measurements over a 10 year period, pending on frequency of measurement and radio transmission will. The measured data can be downloaded to a PC via the USB interface and MSR PC Software for data analysis. Alternatively, with the optional GSM terminal, measured data can be transmitted to the MSR SmartCloud via the mobile network where it can then be readily accessed over the internet and shared with other colleagues.
