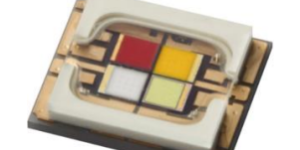

The ProLight PBEE series is a compact high power light source containing 4 colours in one package. The distance between each of the 4 LED die is small creating a small optical source for excellent optical control and efficient colour mixing.
Main Features
- 40 Watt
- AIN ceramic substrate
- 4 Colours RGB plus PC Green
- Small LES 2.1mm x 2.1mm
- Small Package 4.68mm x 5.75mm
Luminous Flux or Radiometric Power
@ 1000mA @2500mA
Colour Part Number Min Typical Typical
Red PBEE-40F4E-RBGPG 115lm 122lm 247lm
Blue 1235mW 1300mW 2640mW
Green 195lm 225lm 372lm
PC Green 330lm 355lm 760lm
Applications:
Entertainment (stage lighting), Architectural, Mood, Outdoor, Indoor
For additional information e-mail info@jktech.co.uk or call John Kain 07758635256
